產品參數
|

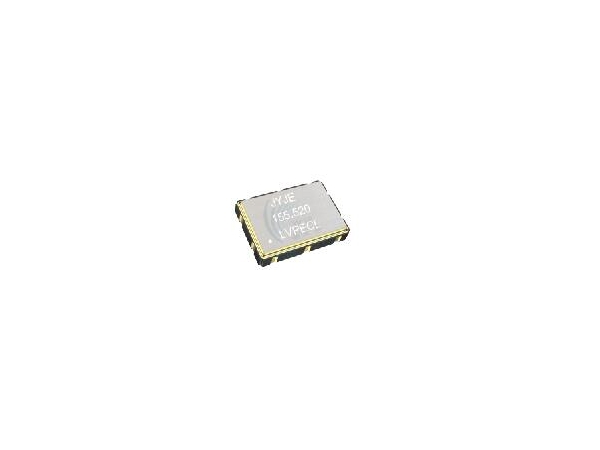

XO 5032 項目類型Item / Type |
目錄Content |
Units |
|
|
1 |
輸出類型Output Type |
LVPECLLVDS |
- |
|
2 |
輸出負載Output Load |
50 |
Ω |
|
3 |
振動方式Oscillation Mode |
Fundamental |
- |
|
4 |
供應電壓Supply Voltage (VDD) |
2.5 3.3 |
V |
|
5 |
頻率范圍Frequency Range |
10.000 ～320.000 |
MHz |
|
6 |
整體頻率穩定度*Overall Frequency Stability* |
±20 ±50 or specify |
ppm |
|
7 |
工作溫度Operating Temperature Range |
-10～ + 70 - 40～ + 85 or specify |
℃ |
|
8 |
儲存溫度范圍Storage Temperature Range |
- 55 ～+ 125 |
℃ |
|
9 |
電壓Voltage Vol ( Max.) / Voh ( Min.) |
VDD - 1.62 / VDD - 1.025 |
V |
|
10 |
上升(Tr) /下降(Tf)延Rise ( Tr ) / Fall ( Tf ) Time ( 20 % ~ 80 % ) |
1 Max. |
nS |
|
11 |
電源電流Supply Current |
80 Max. |
mA |
|
12 |
對稱性Symmetry |
45 ～ 55 |
% |
|
13 |
啟動時間Start-up Time |
10 Max. |
mS |
|
14 |
基礎抖動hase Jitter ( 12 KHz ~ 20 MHz ) |
1 Max. |
pS |
